Luci Connector

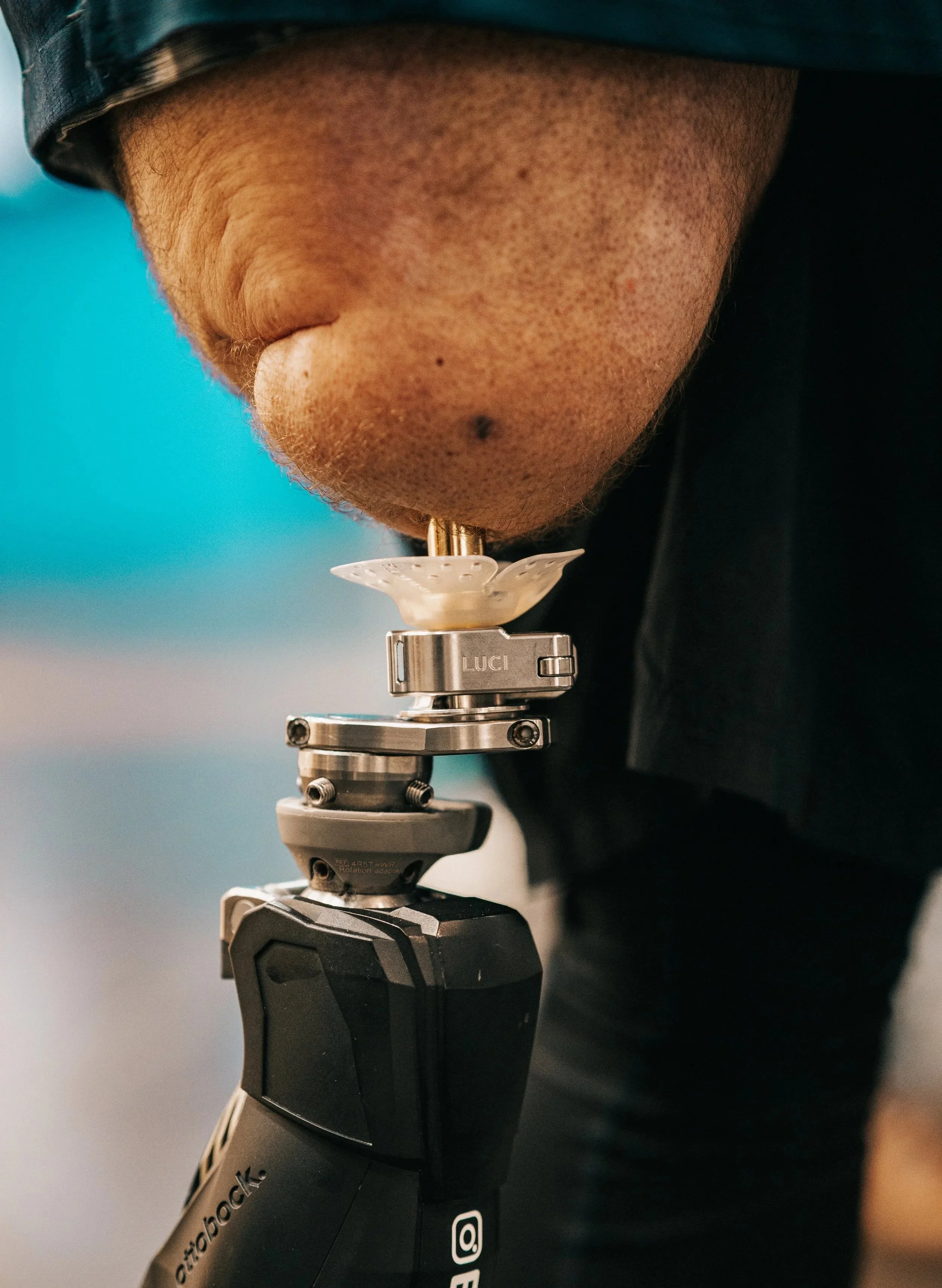

The solution for a reliable connection between the prosthesis and the body, which is easily operated without tools, and delivered as a lightweight, waterproof, and elegant design. With the Luci Connector, simplicity meets elegance
The new generation of quick release connectors
Quick & easy
A fast and reliable connector that can be used without tools. Installation is easy due to the 360-degree and clamping force adjustment.
Design & Durability
Compact, lightweight, and timeless design through using high-quality materials and only a few moving parts
Application & Compatibility
For users with transtibial or transfemoral amputations. The connector is meant to be used with the BADAL X system and any of the 0, 10, 20, 30, 40, 50, or 60mm offsetplates.
Conform international standards
The Luci Connector and offsetplates are tested according to ISO 10328 and are delivered with a 24-month warranty. OTN Innovations B.V. operates conform ISO 13485.
All specifications
Product REF
OTNI 17
Material
Titanium, stainless steel, bronze
Possible offsets
0, 10, 20, 30K, 40, 40K, 50, 50K, 60, 60K (mm)
Certification
ISO 10328:2016 & ISO 13485:2016
Allowed mobility rate
K1-K4
Allowed bodyweight
Max. 125 kg / 275 lbs
Weight of the Luci Connector Set
Weight of the offsetplate 0-60mm
82 - 198 gr. / 2.89 - 6.98 oz
Combined system weight
System dimensions
Netto system height
Warranty
2 years
Documents
For any product information documents, please see our downloads page.
